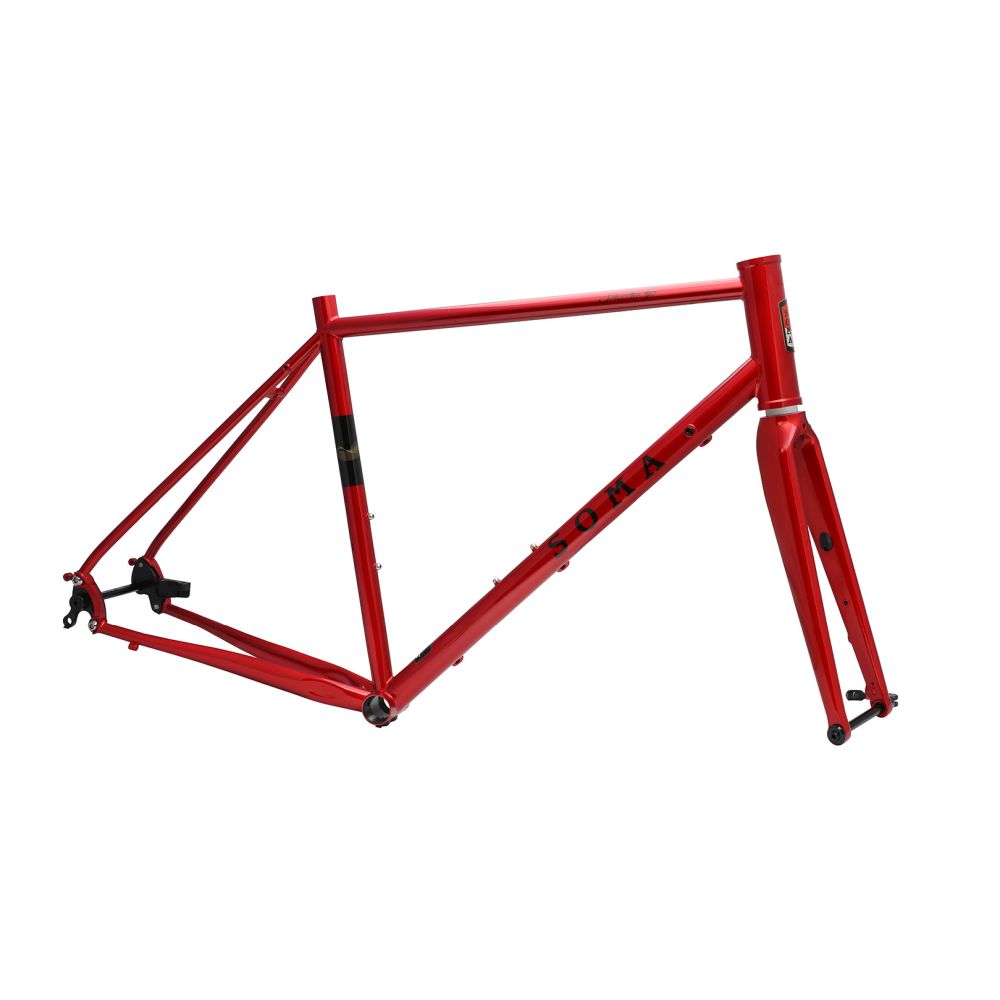

Soma Smoothie Hp Frame

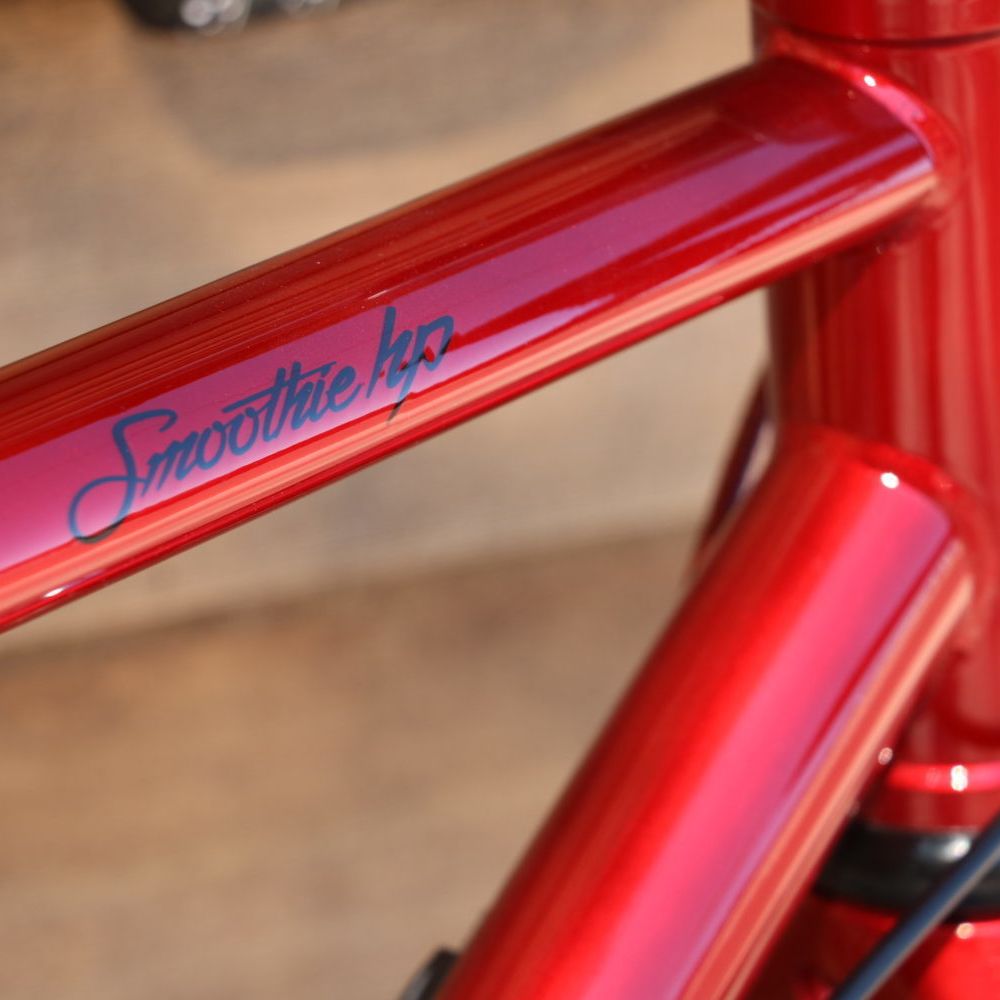

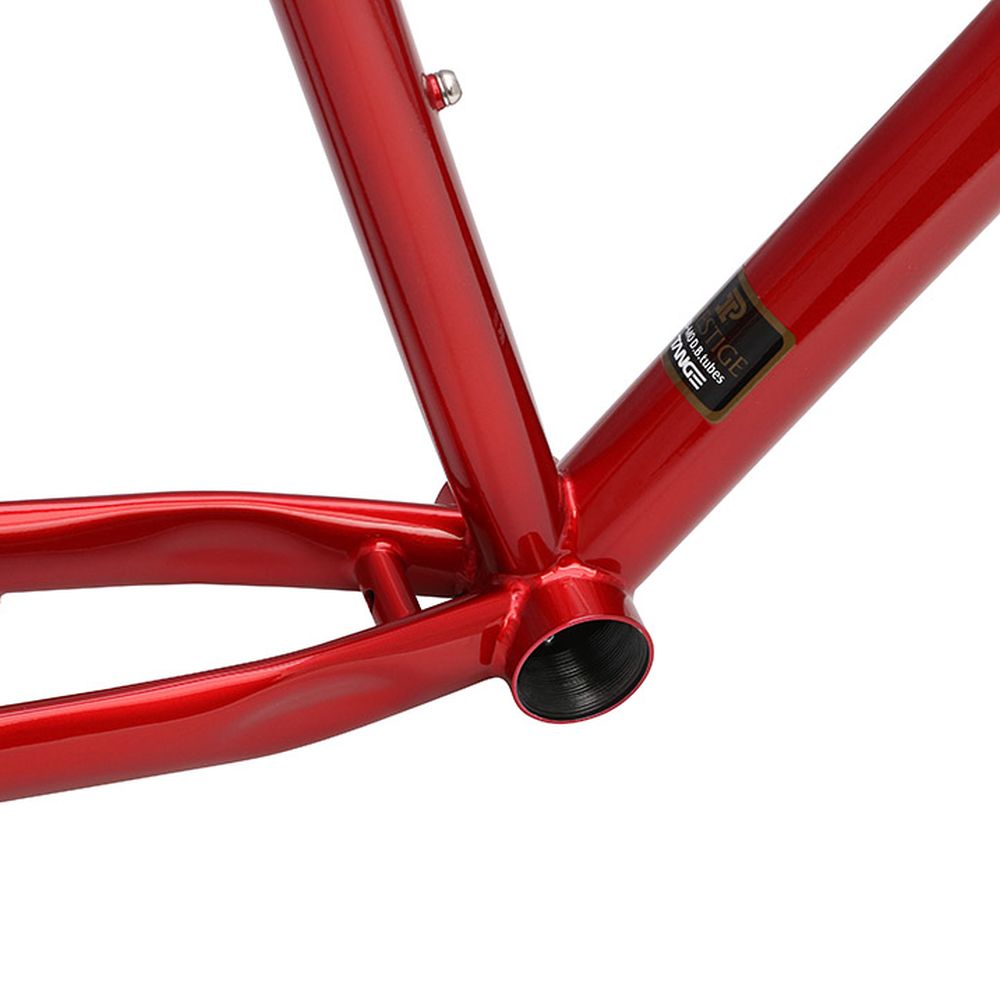

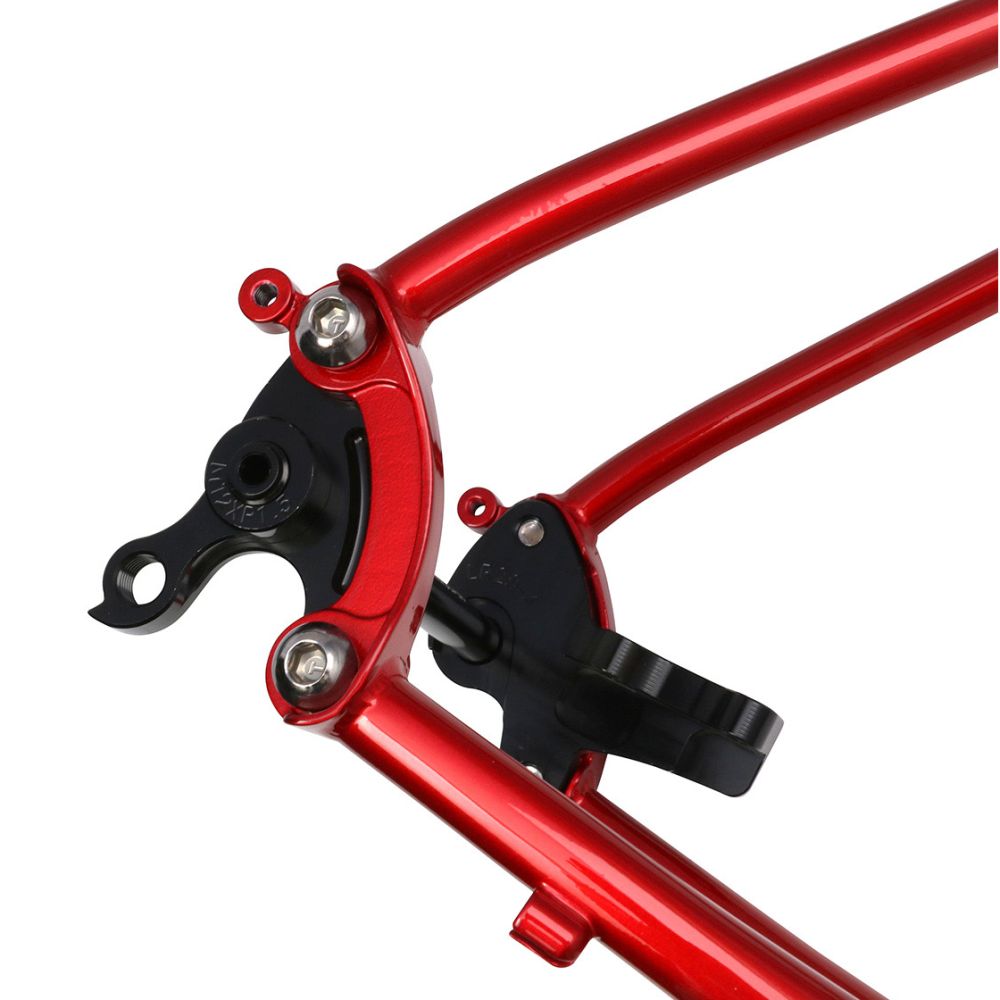

The Smoothie HP is the “high protein” version of our Smoothie road frame that was part of our line for almost 20 years. Extra large diameter, thin-wall Tange Prestige chromoly coupled with modern touches like thru-axles and compact geometry give this frame increased power transfer and road feel while still delivering a composed and plush ride at all speeds. The re-designed geometry combines a comfortable higher stack with a shorter wheelbase that rewards skillful riders. Tange Prestige heat-treated double butted CrMo steel Extra-oversized down tube and chainstays for greater pedaling stiffness Ovalized top tube for increased lateral stiffness and vertical compliance Size specific tubing, larger downtubes on larger sized frames Comfortable high stack matched with a tighter wheelbase than the typical big brand endurance road frame Replaceable modular dropouts (12 x 142mm bolt-on thru-axle, fits flat mount disc brake) BSA Threaded bottom bracket shell Rear rack/fender mounts Max tire size: 700x32c with fenders Two water bottle boss sets SPECIFICATIONS AND RECOMMENDATIONS FRAME Seatpost: 27.2mm, Seat collar: 29.8 or 30.0mm Front derailleur: 28.6mm, bottom pull Rear hub thru-axle: 142mm x 12mm Headset SHIS: ZS44/28.6 | EC44/40) Max.Tire Fit: 700c x 35mm (certain front derailleurs may reduce tire clearance) Min. Tire Recommendation: 700c x 23mm - Max chainring fit: 52-39-30t, 53-39t, Bottom bracket shell: 68mm wide, English threads Compatible with downtube shifters Rear disc brakes: 140mm rotors (160mm max), Flat mount Also compatible with 57mm reach road rim brake Rear rack fitting: We recommend a rear rack designed for short chainstay bikes like our Rakku to reduce heel strike with large bags. Recommended fender fit: 37-45mm wide; ideally 10mm wider than tire width Maximum weight with rider and cargo: 270 lbs FORK Rake: 43mm (48mm for size 48cm and 52cm) Axle to crown: 380mm Disc brake mount type: Flat mount, 160mm max rotors Also compatible with 57mm reach road rim brake Hub thru-axle: 100 x 12 Fender mounts on inside of legs Max.Tire Fit: 700c x 35mm Steerer: Aluminum, so you can use either star washers or a compression (expansion) plug with your headset. 350mm long
