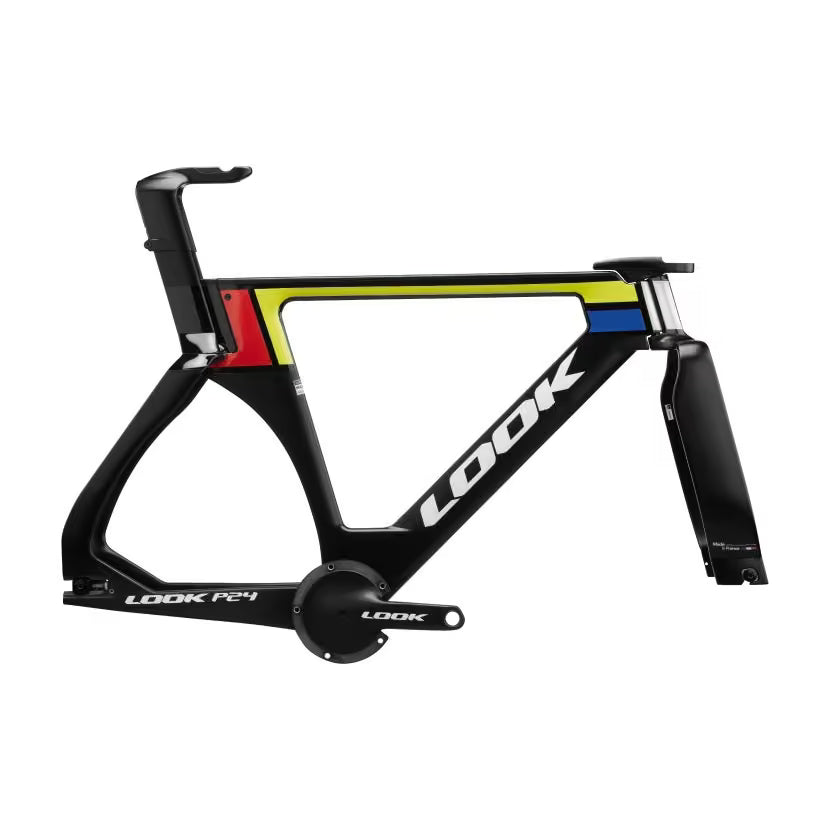

The sleek and futuristic lines of the LOOK P24 embody its bold and dynamic character. It epitomizes the essence of speed, purity, and unwavering confidence. It is an extension of the rider's body, a seamless fusion between man, machine, and the track. Get ready to feel the palpable excitement, pure adrenaline, and insatiable desire for victory.
TECHNICAL SPECIFICATIONS
| Frame | Very High Modulus Carbon UD Glossy finish |
|---|---|
| Crankset | LOOK ZED Track (without plates) – Short version : 165 / 167.5 / 170 mm Medium version: 172.5 / 175 / 177.5 mm |
| Bottom bracket | BB 65 (LOOK Specific) |
| Seatpost | Air Seatpost |
| Stem | Air Stem – available in 65mm / 75mm / 85mm / 95mm / 105mm / 115mm |
| Handlebar | Not included - (LOOK P24 specific – complete with Look Air bar poursuite / Look Air bar madisson / Look Air bar Vitesse) |

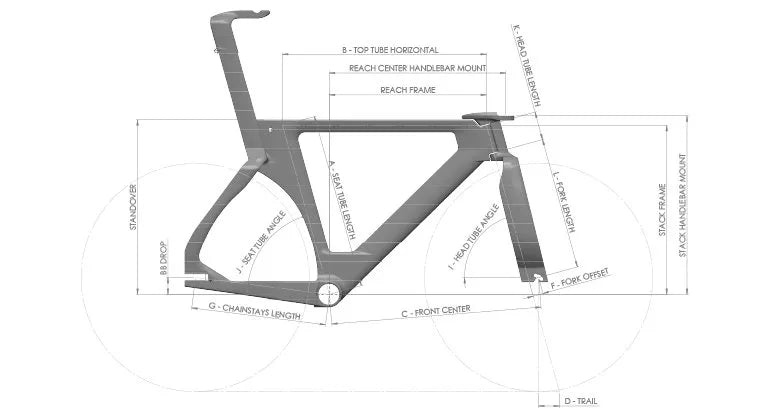

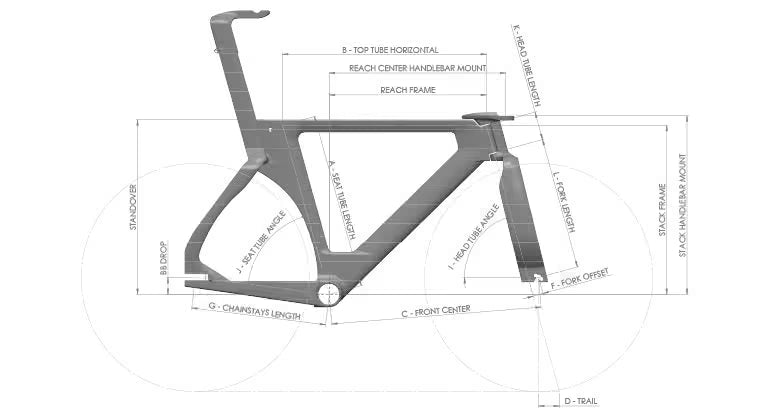

| XS | S | M | L | |
|---|---|---|---|---|
| Stack | 466 | 483 | 500 | 517 |
| Reach | 412.6 | 438.6 | 464.6 | 490.6 |
| Reach center handlebar mount (65mm stem) | 469.6 | 495.6 | 521.6 | 547.6 |
| Min stack center handlebar mount | 74.7 | 74.7 | 74.7 | 74.7 |
| I - Head tube angle (°) | 74.7 | 74.7 | 74.7 | 74.7 |
| J - Seat tube angle (°) | 74.5 | 74.5 | 74.5 | 74.5 |
| A - Seat tube length | 483.3 | 501 | 518.7 | 536.4 |
| B - Top tube length | 541.9 | 572.6 | 603.3 | 634 |
| C - Front Center | 590.5 | 621 | 651.6 | |
| D - Trail | 61.4 | 61.4 | 61.4 | 61.4 |
| F - Fork offset | 30 | 30 | 30 | 30 |
| G - Chain stays length | 399 | 399 | 399 | 399 |
| K - Head tube length | 48.9 | 66.5 | 84.1 | 101.7 |
| L - Fork length | 390.6 | 390.6 | 390.6 | 390.6 |
| BB Drop | 50 | 50 | 50 | 50 |
| Standover | 482.5 | 499.5 | 516.5 | 533.5 |
